Product Details
Place of Origin: China
Brand Name: OUB
Certification: ISO9001
Model Number: 56C-22-12460
Payment & Shipping Terms
Minimum Order Quantity: 10 Pcs/Accept trial order
Price: Negotiable
Packaging Details: PP Bag Inside,Carton Box Outside
Delivery Time: Within 5-15 days after getting your desposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000Pcs
PART NO.: |
56C-22-12460 |
Seal No.: |
56C2212460 |
Seal Type: |
QLFT |
Pressure Range: |
0-0.5MPA |
Material: |
Steel+NBR |
Certifie: |
ISO9001 |
Temperature: |
-10~+120℃ |
Service: |
OEM And ODM |
PART NO.: |
56C-22-12460 |
Seal No.: |
56C2212460 |
Seal Type: |
QLFT |
Pressure Range: |
0-0.5MPA |
Material: |
Steel+NBR |
Certifie: |
ISO9001 |
Temperature: |
-10~+120℃ |
Service: |
OEM And ODM |
1. Repair Seal Kit Details
| Part NO | 56C-22-12460 |
| Machine | Komatsu |
| Size | OEM |
| Material | NBR |
| Seal type | QLF |
2. Parts on group rear axle ,final drive L.H. :
| Pos. | Part No | Qty | Parts name |
| 56C-22-14000 | [1] | Final Drive Assembly | |
| 56C-22-14001 | [1] | Final Drive Assembly, L.H. | |
| 56C-22-20003 | [1] | Axle Assembly | |
| 56C-22-20004 | [1] | Axle Assembly, Rear | |
| 56C-22-22000 | [1] | Final Drive Assembly | |
| 56C-22-22001 | [1] | Final Drive Assembly, Rear | |
| 35 | 01010-60820 | [12] | Bolt Komatsu |
| 13 | 01010-61235 | [8] | Bolt Komatsu |
| 22 | 01010-61450 | [8] | Bolt Komatsu |
| 18 | 01252-41025 | [3] | Bolt Komatsu |
| 36 | 01643-30823 | [12] | Washer Komatsu |
| 14 | 01643-31232 | [8] | Washer Komatsu |
| 4 | 04064-06020 | [1] | Ring, Snap |
| 9 | 04260-01587 | [3] | Ball, Steel Komatsu |
| 27 | 07000-15170 | [1] | O-ring Komatsu OEM |
| 15 | 07000-15280 | [1] | O-ring |
| 17 | 07000-15410 | [1] | O-ring |
| 25 | 07002-12434 | [1] | O-ring |
| 11 | 07002-13634 | [1] | O-ring |
| 24 | 07044-12412 | [1] | Plug Komatsu |
| 10 | 07044-13620 | [1] | Plug Komatsu |
| 20 | 23W-22-22350 | [1] | Bearing Komatsu |
| 16 | 286-22-12630 | [1] | Button Komatsu |
| 23 | 421-22-12160 | [2] | Shim, T=0.05mm Komatsu |
| 23 | 421-22-12170 | [2] | Shim, T=0.2mm Komatsu |
| 23 | 421-22-12180 | [1] | Shim, T=0.5mm Komatsu |
| 23 | 421-22-12190 | [2] | Shim, T=1.0mm Komatsu |
| 21 | 421-22-12220 | [1] | Retainer Komatsu |
| 2 | 421-22-12350 | [1] | Spacer Komatsu |
| 34 | 421-22-12360 | [6] | Plate Komatsu |
| 6 | 421-22-12770 | [6] | Bearing Komatsu |
| 32 | 421-22-12790 | [1] | Bearing Komatsu |
| 8 | 424-22-12510 | [3] | Pin Komatsu |
| 33 | 56B-22-12341 | [1] | Hub Komatsu |
| 33 | 56B-22-12342 | [1] | Hub Komatsu |
| 1 | 56B-22-12420 | [1] | Gear, Sun Komatsu |
| 5 | 56B-22-12530 | [3] | Gear Komatsu |
| 31 | 56B-22-12541 | [1] | Gear, Ring Komatsu |
| 7 | 56B-22-12610 | [1] | Carrier Komatsu |
| 12 | 56B-22-12621 | [1] | Cover |
| 3 | 56C-22-12411 | [1] | Shaft |
| 26 | 56C-22-12460 | [1] | Seal Komatsu |
| 19 | 56C-22-12631 | [1] | Retainer |
| 30 | 56C-22-12680 | [1] | Protector |
| 29 | 56C-22-12712 | [1] | Hub |
| 28 | 56C-22-13210 | [1] | Tube, Spiral |

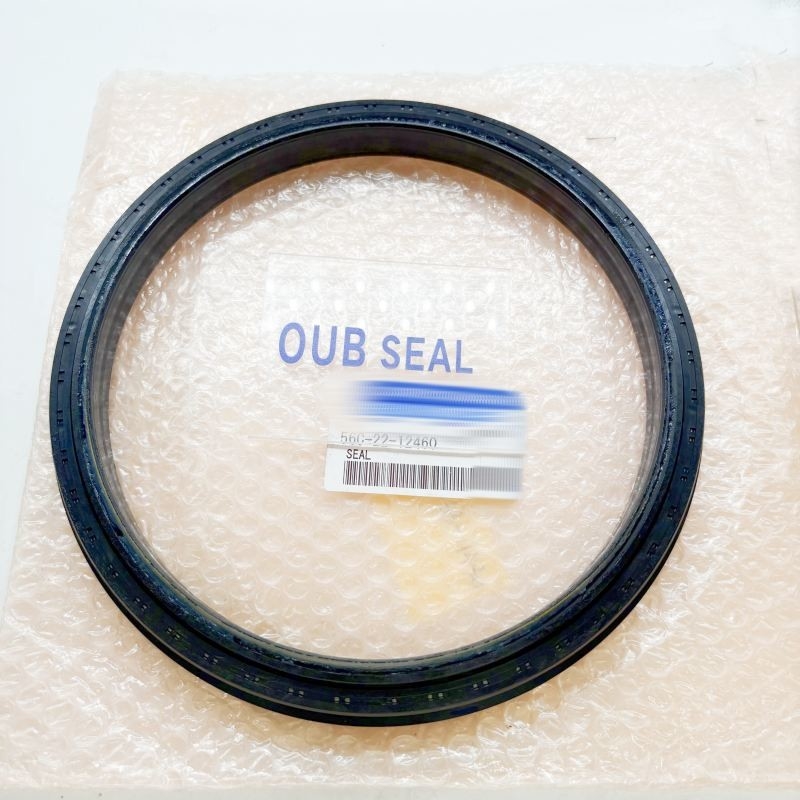

3. 56C-22-12460 Picture viewing
4. SEAL KOMATSU CATALOG:
| Part NO. | Part NO. | Part NO. | Part NO. |
| 56C-22-12460 | 154-30-00450 | 07018-10352 | 6711-29-3521 |
| 6211-61-1533 | 21T-30-00180 | 07018-20452 | 423-22-22461 |
| 195-63-94170 | 232-15-19220 | 07018-12205 | 6208-21-1310 |
| 07145-00060 | 234-15-29210 | 07018-10904 | 111-92-11250 |
| 198-63-75190 | 234-15-29220 | 07018-01104 | 707-56-70540 |
| 07016-20908 | 569-15-12860 | 07018-11805 | 201-25-11110 |
| 705-17-02830 | 568-15-12850 | 07018-12005 | 385-10174071 |
| 566-09-31161 | 144-15-22881 | 07018-00954 | 705-17-01470 |
| SB9512013 | 07016-00306 | 07010-00050 | 111-92-11190 |
5. FAQ
Q1. What kind of cylinder service kit do you have?
A1. We have cylinder kits such as boom,arm,bucket,blade lift,tilt,ripper,counter weigh,adjuster,positioning cylinder.
Q2. I want to buy 21T-30-00180 BOOM cylinder seal kit kit about 5 set, do you have ?
A2. Thank you for your trust, I can send you the PI,just give me your email.
Q3. Can you quote for the size and picture?
A3. Of cause!We can check by a part no.or machine no.or size or picture.becuase we are professional.
