Guangzhou Opal Machinery Parts Operation Department vivianwenwen8@gmail.com 86-135-33728134
Product Details
Place of Origin: China
Brand Name: OUB
Model Number: 100050A1
Payment & Shipping Terms
Minimum Order Quantity: 10 Pcs/Accept trial order
Price: Negotiable
Packaging Details: PP Bag Inside.outer is carton with film wrapped.
Delivery Time: Within 5-15 days after getting your desposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000SET
OEM NO.: |
100050A1 |
Model: |
Case Parts 921B 921C 921 |
NAME: |
Friction Disc |
Machine: |
CASE |
Size: |
OEM Standard |
Material: |
HQC,HQP,HQE |
Friction Guide Value: |
Dynamic >0.5 |
Max.surface Pressure: |
According To Material Properties |
Color: |
Silver Gray Gold |
Package: |
1pcs As A Seperate |
OEM NO.: |
100050A1 |
Model: |
Case Parts 921B 921C 921 |
NAME: |
Friction Disc |
Machine: |
CASE |
Size: |
OEM Standard |
Material: |
HQC,HQP,HQE |
Friction Guide Value: |
Dynamic >0.5 |
Max.surface Pressure: |
According To Material Properties |
Color: |
Silver Gray Gold |
Package: |
1pcs As A Seperate |
1. Product Details
| Part NO. | 100050A1 |
| Machine |
CASE |
| Model | Case parts 921B 921C 921 |
| Size | OEM Standard |
| Material | HQC,HQP,HQE |
| Color | Silver Gray |
2. 100050A1 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 2 | S301706 | [1] | PINION |
| 3 | S301716 | [2] | DOWEL |
| 4 | S301814 | [15] | BOLT |
| 5 | D74504 | [15] | WASHER |
| 6 | S301019 | [46] | STUD |
| 7 | S301717 | [2] | SET |
| 8 | S301745 | [2] | SUPPORT |
| 9 | S301744 | [2] | O-RING |
| 10 | S301747 | [4] | SCREW |
| 11 | S301746 | [4] | WASHER |
| 12 | 232-4618 | [36] | LOCK NUT,1/2"-20, GC |
| 13 | D74508 | [36] | WASHER |
| 14 | S301726 | [36] | STUD |
| 15 | S301718 | [2] | LARGE PLATE |
| 16 | S301719 | [1] | BLOCK |
| 16 | S301720 | [1] | BLOCK |
| 16 | S301721 | [1] | BLOCK |
| 16 | S301722 | [1] | BLOCK |
| 17 | 100049A1 | [12] | DISC |
| 18 | 100050A1 | [10] | DISC |
| . . | 100062A1 | [1] | HUB |
| . . | 100061A1 | [1] | HUB |
| 19 | S301727 | [1] | HOUSING |
| 20 | S301728 | [1] | HOUSING |
| 21 | S301725 | [2] | PISTON |
| 22 | S301739 | [4] | SEAL |
| 23 | S301740 | [2] | O-RING |
| 24 | S301741 | [20] | SPRING |
| 25 | S301742 | [20] | WASHER |
| 26 | S301743 | [20] | BOLT |
| 27 | S301729 | [2] | PLUG |
| 28 | K12362 | [4] | PLUG |
| 29 | NSS | [1] | |
| 30 | S301737 | [4] | WASHER |
| 31 | S301738 | [4] | PLUG |
| 32 | S92341 | [92] | WASHER |
| 33 | 29-1714 | [92] | NUT,7/8"-14, G8, Hvy |

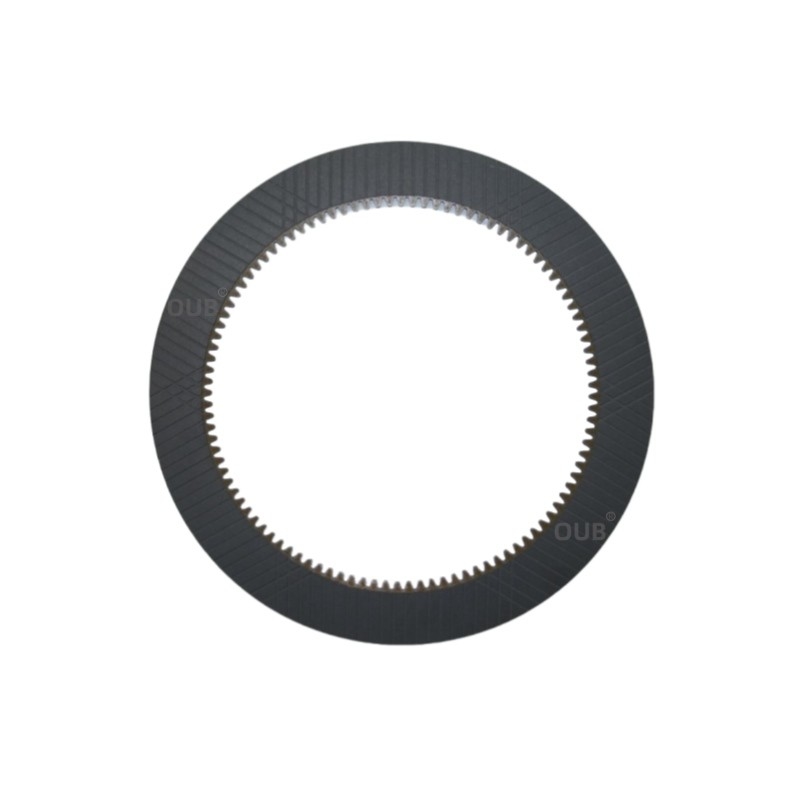

3. Picture details of 100050A1:
4. Part No.on the Group
| 100049A1 | 3125322R2 |
| 100050A1 | A188412 |
| 237017A1 | D50040 |
| 237021A1 | D50081 |
| 237023A1 | D50084 |
| 308029A1 | K963646 |
| 308030A1 |
5. Our advantages
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2. How many teeth of the friction?
A2. We can tell you the teeth qty if you offer the part No. .
Q3. Can you quote for only one part number?
A3. Of cause.We can check by a part no.or machine no.or size or picture.
Q4. Are you a factory or a trader?
A4. We are a factory and we also have our own sales team.
7. Exhibition & Warehous
Machine NO. ,Model No. Part No. , And More
